22Biomass pellet mill is a kind of equipment that makes biomass raw materials such as agricultural and forestry wastes into high-density pellet fuel through mechanical extrusion process.
View detailsSearch the whole station

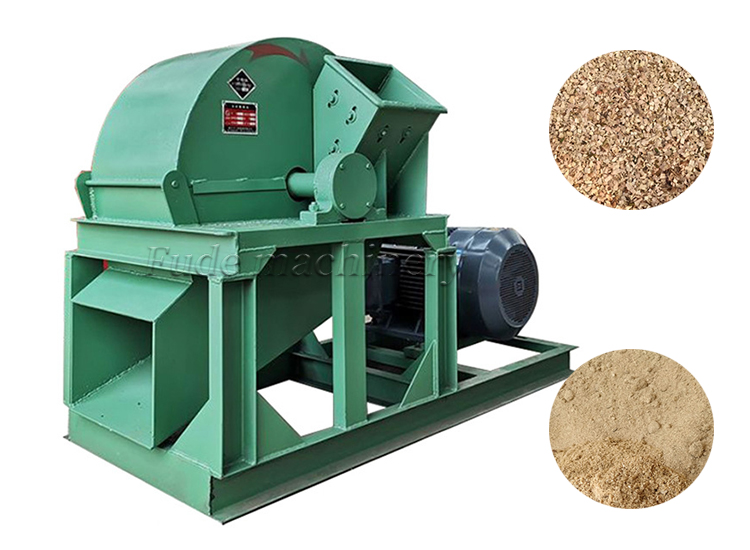

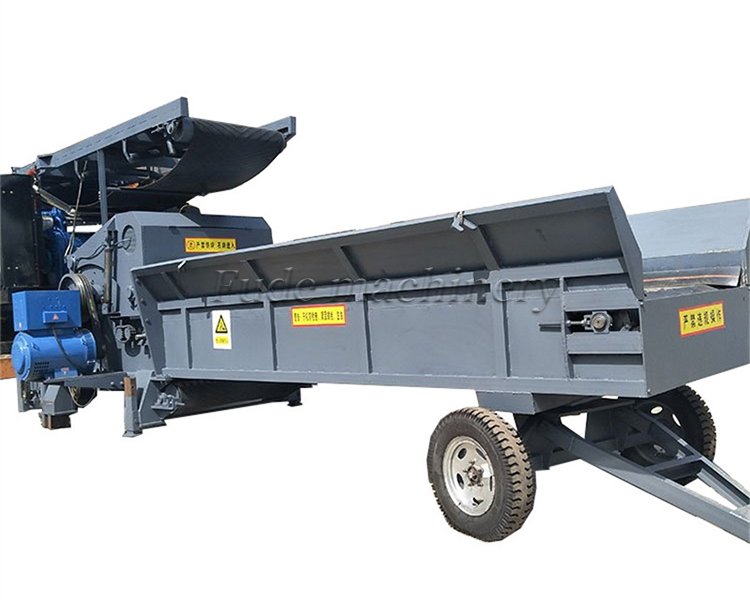

Wood crusher is a mechanical equipment to deal with wood materials, through the high-speed operation of the blades, hammer blades or a combination of knives, the logs, branches, board edges, waste furniture and other wood raw materials crushed into sawdust, wood shavings or granular finished products, crushing granularity can be controlled, applicable to a wide range of raw materials (can be dealt with nails containing timber, wet materials, etc.), etc., is widely used in biomass energy (such as pellet fuel), man-made panels, edible fungi Widely used in biomass energy (such as pellet fuel, artificial lumber, edible fungi, paper raw materials and garden waste recycling and other industries, in the realization of waste wood resource utilization, reduce environmental pollution at the same time, help enterprises reduce costs and increase efficiency, is to promote the development of the green recycling economy is the key equipment.
wood chipper

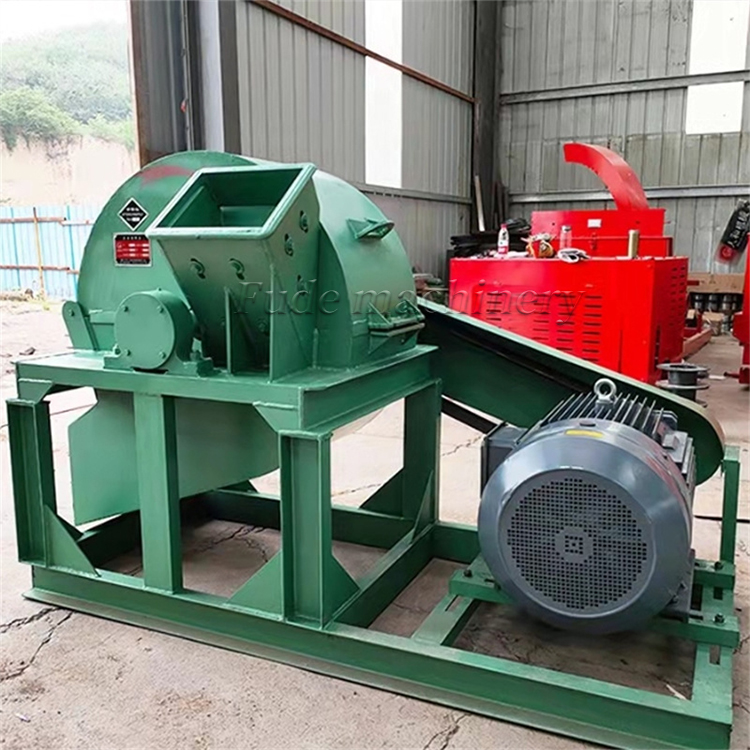

Wood chip machine is a kind of mechanical equipment that crushes the raw materials such as wood, branches and blocks into fine wood chips through high-speed rotating blades or hammer blades, and its working principle is similar to the double crushing of “cutting + impact”, and the finished wood chips are adjustable in size and high uniformity, which are widely used in the fields of raw material preparation for paper mills, substrate processing for edible fungus cultivation, and production of machine-made wood charcoal, Biomass pellet fuel manufacturing and garden waste resource treatment and other fields, can effectively improve the utilization rate of wood and reduce the cost of waste treatment.

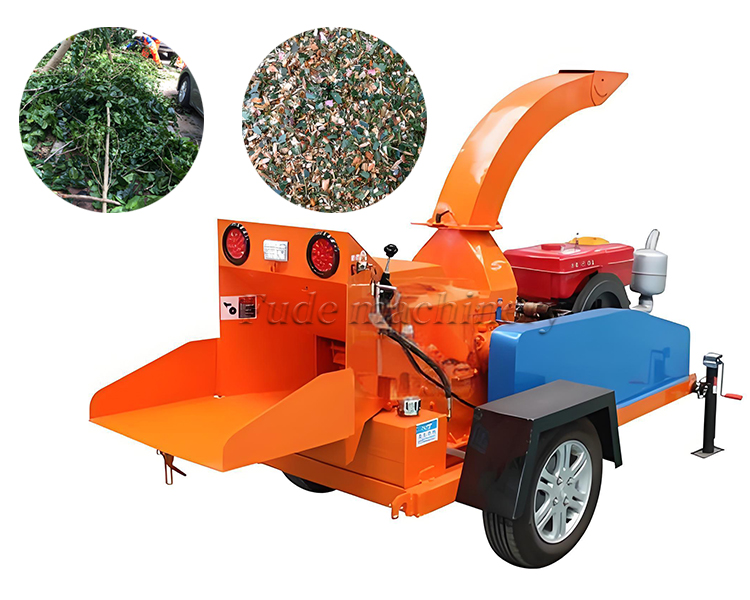

Tree branch pulverizer

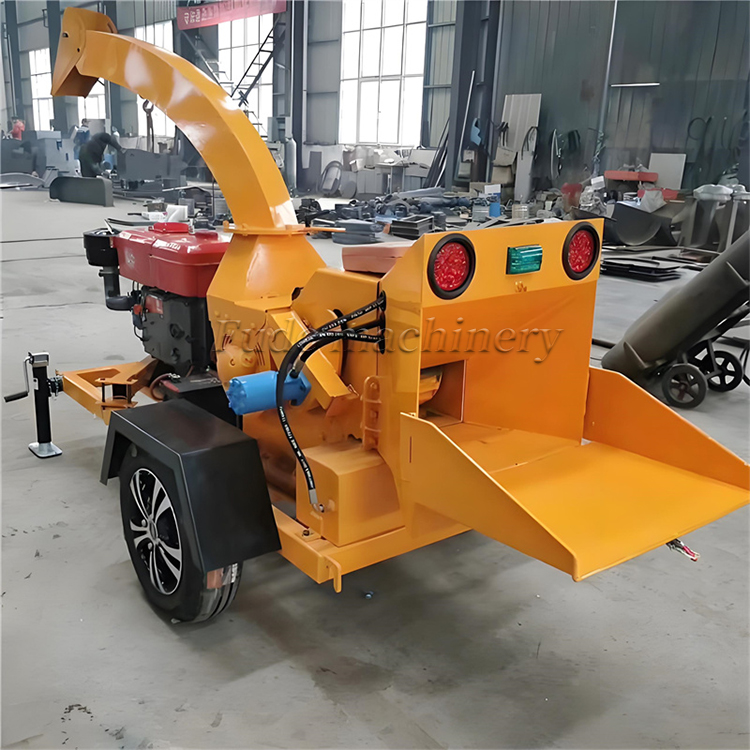

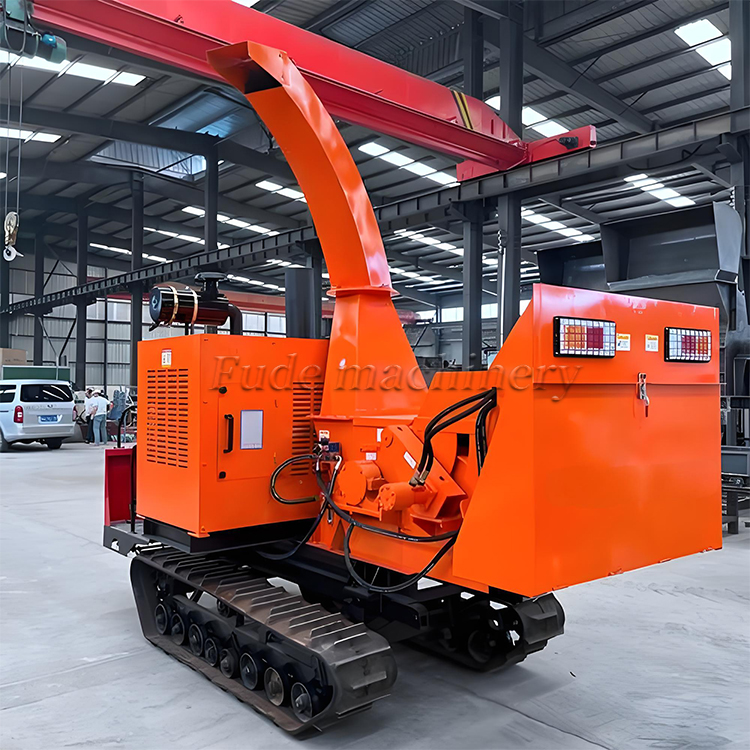

Tree branch crusher is suitable for gardening, forestry, highway tree maintenance, parks, golf courses and other departments, mainly used for crushing the pruning of trees cut off a variety of branches, after crushing can be used for mulch, garden beds, organic fertilizers, biomass power generation, etc., crushing can be sprayed directly into the transport truck, making it more convenient to transport, this branch crusher can be used at any time and anywhere to crush the tree branches, easy to move.

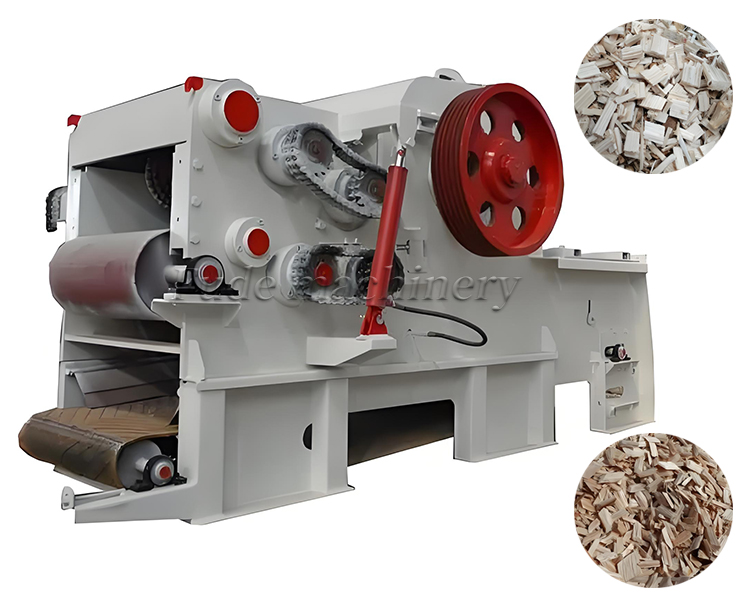

Drum chipper

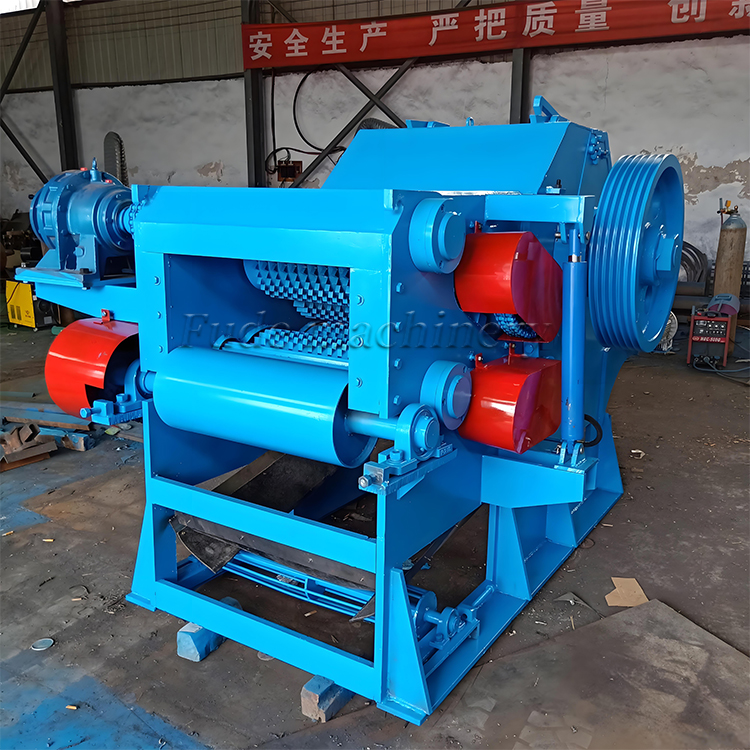

The wood chipper realizes efficient chipping of wood through the high-speed rotation of the blade and the flying knife, combined with the synergistic action of the feeding and discharging devices. It is a kind of mechanical equipment specialized in processing wood raw material into wood chips, which is widely used in paper making, artificial board, biomass power generation, edible fungus cultivation and other industries.
model number | BYG216 | BYG217 | BYG218 |
Feed roller motor power (kw) | 2.2-3 | 3-4 | 4-5 |
Number of blades (sheets) | 2 | 2 | 3 |
Size of feed opening (mm) | 160*400 | 230*500 | 300*680 |
Knife roller speed (rpm) | 592 | 590 | 650 |
Oil pump motor power (kw) | 1.5*1 | 1.5*1 | 1.5*1 |
Maximum diameter of processed material (mm) | 160*400 | 230*500 | 300*600 |
Length of wood chips (mm) | 30 | 30 | 30 |
Production capacity (t/h) | 3-5 | 8-10 | 14-18 |
Main motor power (kW) | 45 | 55 | 110 |
Weight (kg) | 2990 | 5030 | 7000 |
External dimensions (mm) | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 |
The data parameters of this table are for reference only, and customization can also be supported.

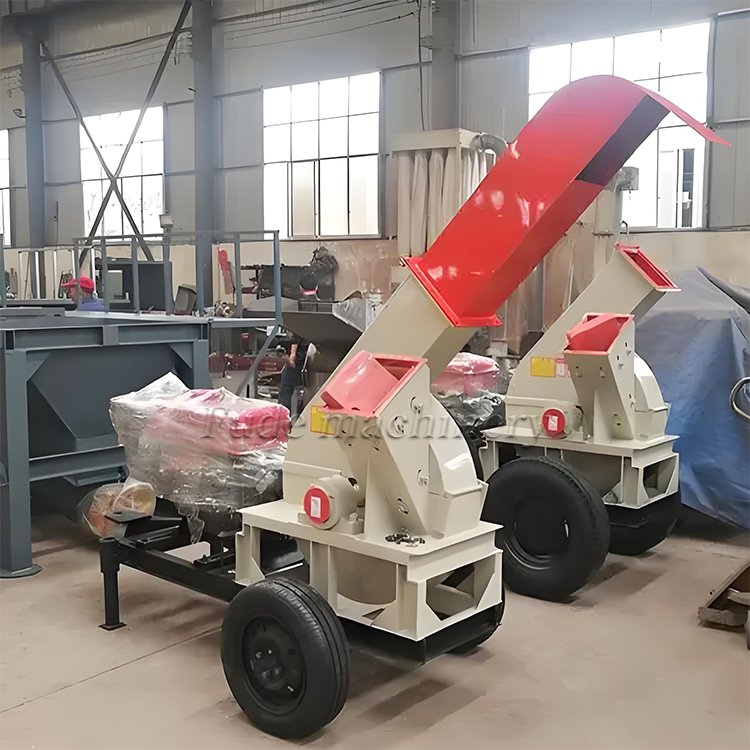

Disk type wood slicer

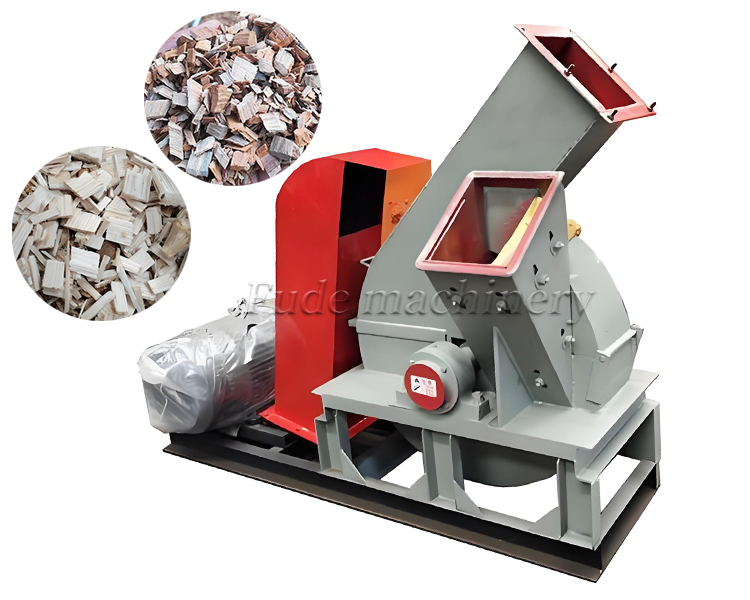

Disc type wood slicer is the equipment that uses the blades on the high-speed rotating knife plate to cut wood, branches and other raw materials into uniform wood slices, which can handle logs, miscellaneous wood, waste wood, bamboo, branches, etc., and the length of the wood slices can be freely adjusted within the specified range, which is suitable for pulp mills, forestry farms, paper mills, boiler combustion as well as manmade boards, medium-fiber boards, etc., and it’s the ideal tool for efficient timber stockpiling.

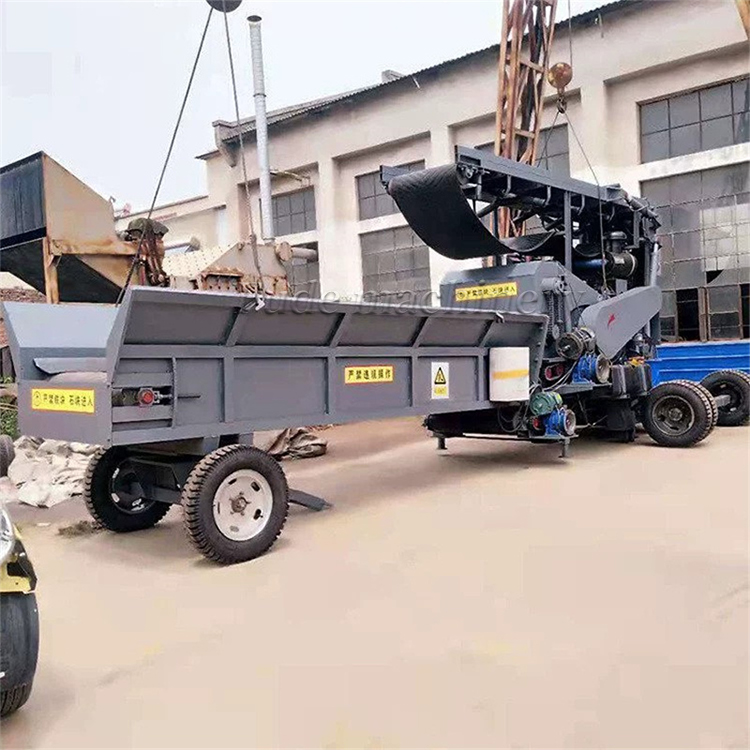

Comprehensive wood crusher
Wood integrated crusher, it can crush dry and wet logs, branches, boards with nails, waste wood, trimmings, straw, crops and many other materials, the equipment has uniform discharge, high output, high efficiency, the size of the feed opening and automatic feeding part of the easy to operate, but also according to the thickness of the material automatically lift and lower the feed opening articulation is equipped with a chain plate conveyor, crushed materials are widely used in the biomass pellets, man-made boards, charcoal, Organic fertilizer and other fields, is the ideal equipment for biomass power plant, artificial board factory and other industries.
Since its establishment in 2015, Fude Machinery has been committed to providing high-quality and high-performance wood equipment solutions to global customers. With advanced production technology, strict quality control, and continuous innovative research and development capabilities, we have received customer satisfaction praise.
Our Fude Machinery factory produces wood equipment including: sawdust machine, branch crusher, forced feed crusher, wood crusher, peeling machine, charcoal machine production line, biomass pellet machine production line, etc. Our company will continue to adhering to the “quality first, customer first” business philosophy, to provide customers around the world to provide more high-quality wood equipment! We will continue to provide customers all over the world with more high-quality wood equipment and solutions.
