What Steps Are in a Phosphate Granulation Line?

If you are planning to invest in phosphate fertilizer production, understanding the complete process is the first step. You need to know what machines are involved and what each one does. At Fude Machinery, we specialize in building complete phosphate fertilizer granulation production lines. We design these systems for clients all over the world. This guide will walk you through each core process step. You will learn how raw phosphate rock is transformed into uniform, high-quality fertilizer pellets ready for the market. This is the blueprint for building your successful fertilizer plant.

Table of Contents

• How do you prepare and crush raw materials?
• What is the best way to mix and granulate phosphate?
• Why are drying and cooling essential for quality?
• How do you finish and package your fertilizer pellets?
• Frequently Asked Questions (FAQ)
• Conclusion and Your Next Steps

How do you prepare and crush raw materials?

The first and most critical stage of the process is accurately measuring your raw materials and crushing them to the right size. The quality of your final product depends entirely on getting the formula and particle size correct at this starting point.

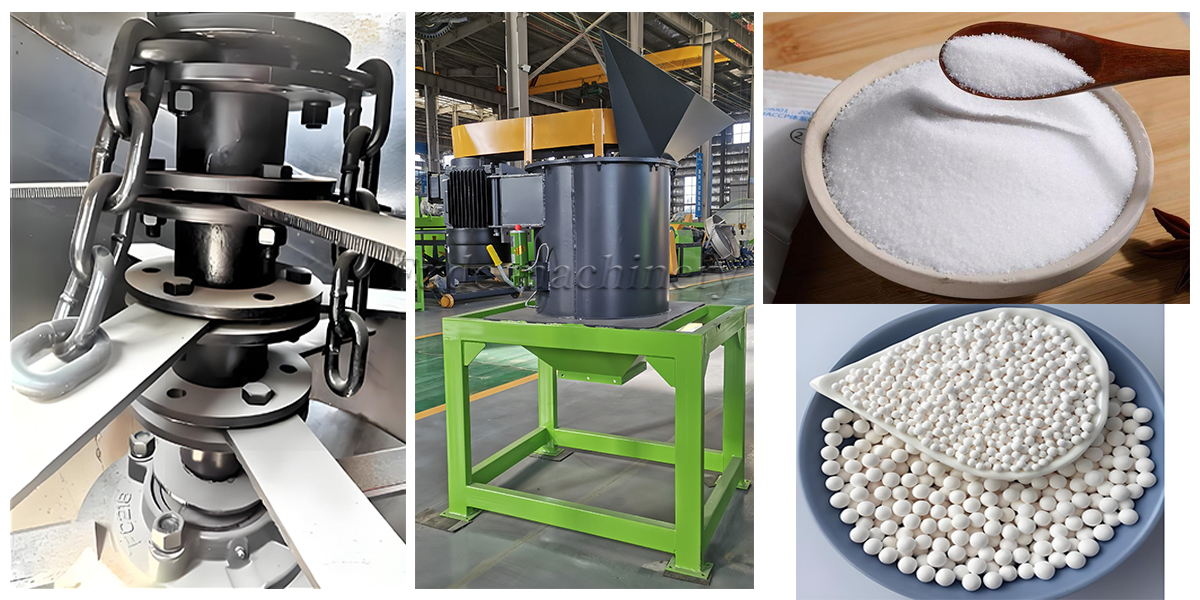

The process begins with your raw materials. A typical phosphate fertilizer is not just phosphate. It is an NPK compound fertilizer, meaning it contains Nitrogen (N), Phosphorus (P), and Potassium (K). Your raw materials will be phosphate rock, a nitrogen source (like urea or ammonium sulfate), and a potassium source (like potash). An automated batching system weighs these materials precisely according to your formula. Getting this wrong means your fertilizer will not have the guaranteed nutrient content. After batching, the materials, especially the lumpy phosphate rock, must be crushed. We use a chain crusher for this. Its high-speed chains strike the material, breaking it into a fine powder. This is essential because granulation requires a fine, consistent powder to work properly.

What is the best way to mix and granulate phosphate?

After crushing, the powdered materials are thoroughly mixed to ensure every granule has the same nutrient content. Then, this uniform powder is fed into a granulator, where it is transformed from a powder into small, round pellets.

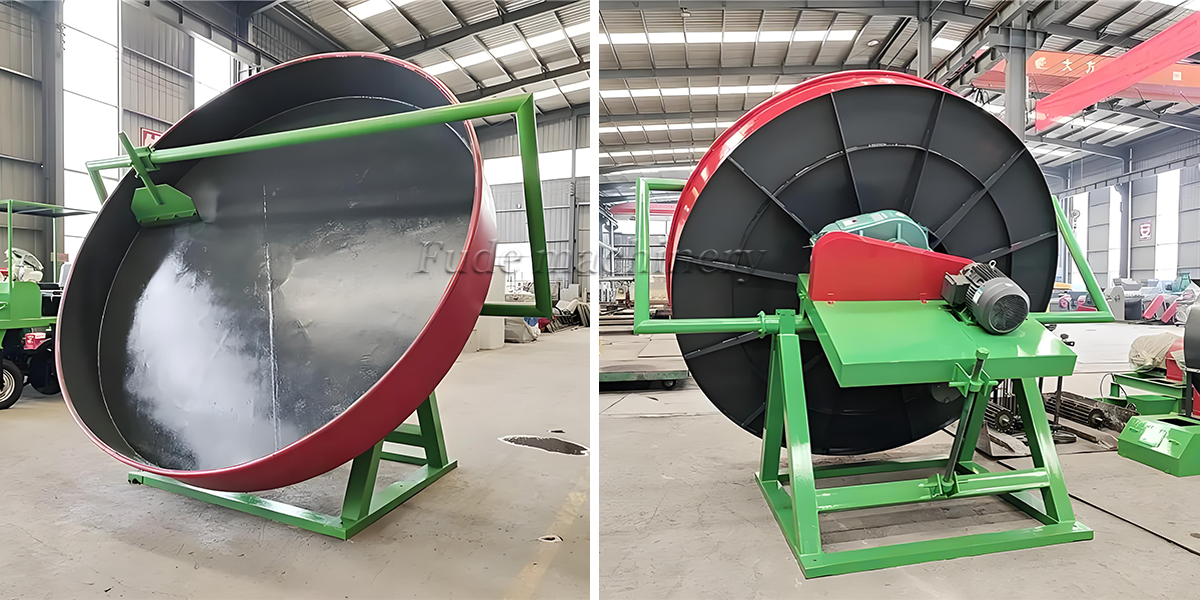

The finely crushed powders from the previous step are first sent to a large horizontal mixer. This machine uses rotating paddles to blend the materials into a completely homogeneous mixture. This is a vital quality control step. After mixing, the powder moves to the granulator. For phosphate and other compound fertilizers, the disc granulator  is an excellent and popular choice. It works like this: the powder enters a large, rotating, angled pan. A system sprays a fine mist of water or a binder onto the powder. As the pan turns, the damp powder starts to stick together, forming tiny seeds. These tiny seeds continue to roll and pick up more powder, growing larger and larger, like making a snowball. The operator can control the size of the final pellets by adjusting the angle and rotational speed of the pan.

Why are drying and cooling essential for quality?

The pellets coming out of the granulator are soft and contain about 20-30% moisture. They are not yet ready for bagging. They must first be dried to make them hard and durable, and then cooled to room temperature to ensure their stability.

This two-part stage is essential for creating a professional, marketable product. First, the wet pellets are fed into a large rotary dryer. This is a long, rotating cylinder where the pellets tumble through a stream of hot air. The heat removes the excess moisture, reducing it to less than 5%. This process hardens the pellets, giving them the structural strength needed to withstand handling, bagging, and transportation without breaking. However, the pellets are now very hot. If you bag them while hot, they will absorb moisture from the air, sweat in the bag, and potentially break down or become moldy. To prevent this, they immediately go into a rotary cooler, which works the same way as the dryer but uses cool air instead of hot air. This brings the pellets down to a stable temperature, ready for the final steps.

How do you finish and package your fertilizer pellets?

The final stage is about quality control and preparing the product for sale. The cooled pellets are screened to ensure uniform size, sometimes coated to prevent caking, and then precisely weighed and packaged into bags.

First, the pellets pass through a rotary screening machine. This machine has a mesh screen that separates the pellets by size. There are three outputs:

1. Finished Product: Pellets that are the correct size go to the packaging machine.
2. Oversized Pellets: Pellets that are too big are sent back to the crusher to be broken up and recycled.
3. Undersized Pellets: Fine powder and pellets that are too small are sent back to the granulator to be reformed. This recycling system makes the entire production line extremely efficient, with very little waste.

For a premium product, the finished pellets can be sent to a coating machine, which adds a thin layer to prevent moisture absorption and caking in the bag. Finally, the finished pellets are conveyed to an automatic packaging machine, which precisely weighs the desired amount (e.g., 25kg or 50kg) and seals them into bags. Your phosphate fertilizer is now ready for sale.

Frequently Asked Questions (FAQ)

Question 1: Why make pellets? Why not just sell the mixed powder?
Granulated fertilizer is far superior. Pellets are easy to spread evenly in the field, they produce almost no dust during application, and they release nutrients more slowly and consistently. This makes them a much higher value product than simple powder.

Question 2: Can this same production line be used for other types of fertilizer?
Yes. This type of compound fertilizer production line ¹  is very versatile. By changing the raw material formula in the batching system, you can produce various NPK fertilizers with different nutrient ratios to meet the needs of different crops and markets.

Question 3: How much factory space do I need for a complete line?
The space required depends on your desired production capacity (e.g., how many tons per hour). A smaller line might require 2,000 square meters, while a larger one could need 5,000 square meters or more. Part of our service at Fude Machinery is to provide a custom factory layout design based on your specific capacity and site.

Conclusion and Your Next Steps

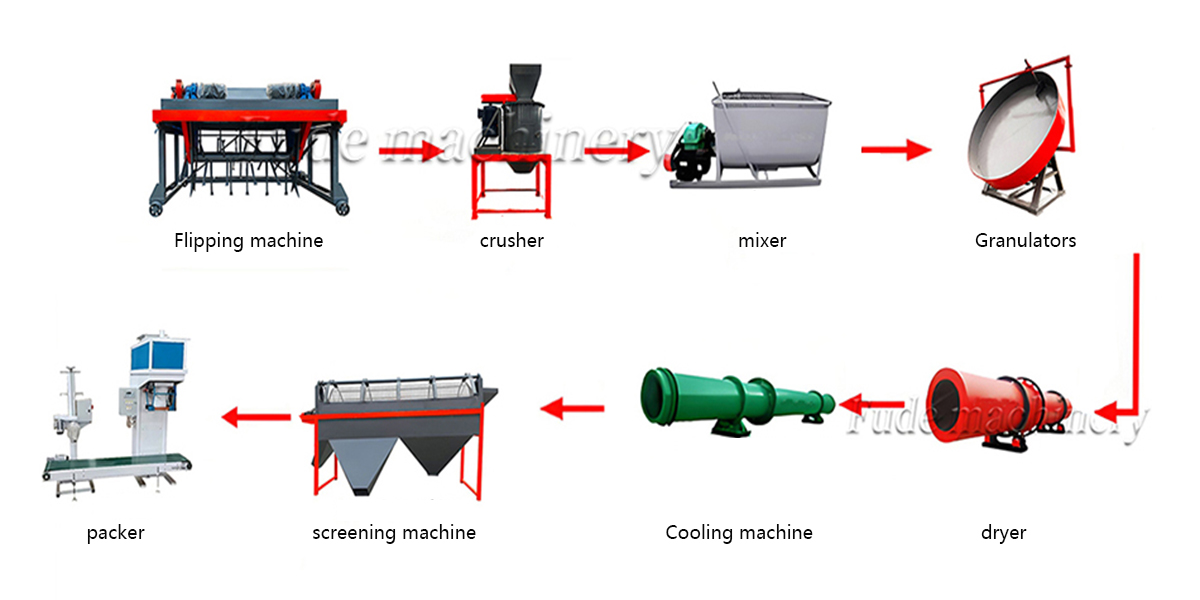

You now have a clear understanding of the core steps required in a complete phosphate fertilizer granulation production line. It is a logical and integrated process, from preparing the raw materials with precise batching and crushing, to forming the pellets through mixing and granulation, and finally, perfecting them with drying, cooling, and screening. Each step relies on a specific piece of machinery, and the entire system must work together seamlessly to produce a high-quality product efficiently.

At Fude Machinery, we are experts in designing, manufacturing, and installing these complete lines. We guide you through every choice to ensure your plant is perfectly configured for your needs.

Contact us today to discuss your project. We can provide a free, custom-designed plan and quotation for your phosphate fertilizer plant.
