What is a feed pellet mill?

Feed Pellet Mill Machine is widely used by people who breed animals or people who are engaging in feed pellet production line for business. It can make pelleted feed for chicken, geese, pigeon, rabbit, cow, sheep, cattle, pig, rabbits, and so on. The reason why they make feed pellets is that pellets are a balanced combination of different kinds of nutrition for the better growth of livestock, poultry and other animals.

Raw Materials to Make Animal Feed Pellets: The raw material can be used to make animal feed pellets by feed pellet mill has corn/maize, alfalfa, wheat bran, grass, rice, beans, oil cake, etc. Usually, large size raw materials should be pulverized by hammer mill. Protein or other nutrients can also be added to the raw powder.

In these years of development in anima feed pellet industry, the technology of animal feed pellet mill has been mature and advanced. In today’s market, the most widely used feed pellet mill has Flat Die Feed Pellet Mill, Small Feed Pellet Plant and Ring Die Feed Pellet Mill. Below we will take a simple view about the three types of feed pellet mill. If you are interested in it or want to know its price and parameters, please contact us directly without hesitation!

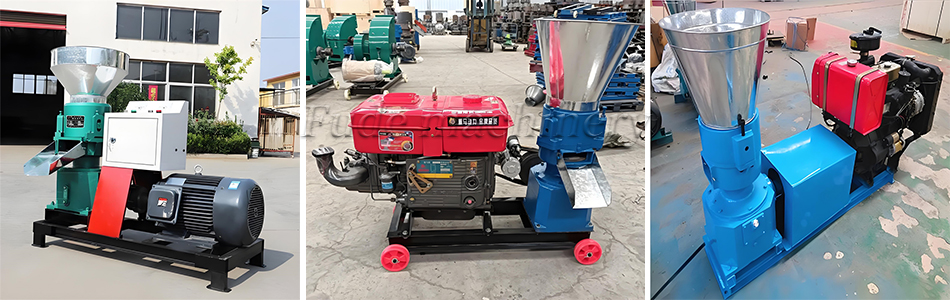

Flat Die Feed Pellet Mill – Small Scale

Flat die feed pellet mill is small scale feed pellet machine that is designed for small scale feed pellet production. Various power sources are available: electric motor, diesel engine, gasoline engine, you can choose according to your own needs. The feed pellet by flat die feed pellet machine can be adjusted into different size through different models of die diameters. And, feed pellet for livestock by flat die feed pellet machine can be manufactured through both different compression ratios and raw materials properties.

Due to the compact structure, beautiful appearance, high output, low power consumption, convenient use, reliable working performance, etc., flat die pellet mill has been the most popular animal feed pellet maker for animal farmers or small scale animal feed pellet produciton line.

The working principle of the flat mold small feeder is as follows:

feed (a machine)

Powdered feed material from the inlet into the hopper, some models by the tempering device spray steam or water tempering to improve the nature of the material.

Compression molding

• Component structure: the core is the flat die and pressure roller, the flat die is placed horizontally with die hole, the pressure roller can rotate on the flat die.
• Extrusion process: the motor drives the flat die to rotate, the pressure roller rotates with it, the material is brought into the gap between the two, and enters into the die hole under extrusion, and the internal structure changes to form particles.

pelletize

The long pellets extruded from the die hole are cut to the desired length by the cutter, which has an adjustable rotational speed.

outfeed

The pellets are thrown out of the flat mold by centrifugal force and collected through the outlet.

Flat Die Feed Pellet Mill Advantages

factory-price-flat-die-pellet-mill

• The roller and die: flat die adopts high quality wear-resisting alloy steel and processed by special heat treatment.
• The hopper adopts thickening material to help strengthen it.
• The main box adopts high quality welding structure to have low noise and shock-absorbing ability.
• The electrical components adopt famous CHINT AND SIEMENS brands and processed by parkerising, acid pickling and spraying plastics. It is also designed with radiation structure.

Small Feed Pellet Plant

STLP 300/STLP400 small feed pellet plant is designed with grinding machine, mixing machine, screw conveyor, silo, pellet mill machine and pellet cooler. It is a small scale complete animal feed pellet mill plant that is suitable for both household and commercial. If you are planning to start animal feed pellet making business, it is a BEST choice since it requires less investment cost, takes small space and has the full functions for animal feed pellet production!

This feed pellet plant can produce 2~8mm of feed pellets with 600-1000kg/h pellet output capacity. The pellets are suitable for feeding pig, cattle, sheep, rabbit, chicken, duck, geese, fish and other animals.

The grinding machine can crush the maize and soya bean meal into fine powder, then the fine powder can mix with the wheat bran, bone meal, microelement, vitamin and other raw materials to make the complete feed mesh. By using our ZLSP feed pellet mill, the mesh is made into feed pellets. The feed pellets can be packed directly after the screening and cooling.

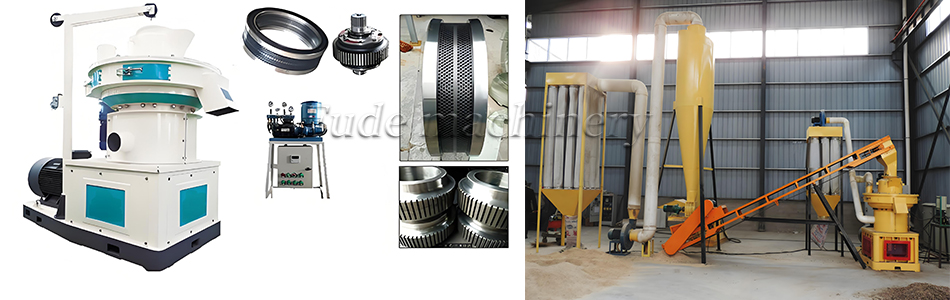

Ring Die Feed Pellet Mill – Large Scale

This animal feed pellet mill is mainly consist of feeding device (screw feeder), hardening and tempering device (conditioner), face plate, press chamber transmission system, overload protection and electrical control system. It can also make feeds for animals such as chicken, cattle, pig, sheep etc, from raw material sorghum, maize, soya meal, rice and wheat etc.

Ring die feed pellet machine is more suitable for large scale animal feed pellet production, usually 1~15TPH. For large scale feed pellet mill plant, we provide equipment selection, factory layout design, estimated cost, etc..

Why Choose GEMCO Animal Feed Pellet Machine?

feed-pellet-mill-manufacturer-Fude Machinery

• Low cost, convenient operation and maintenance
• High yield, energy-saving and environmental friendly
• Designed by Fude Machinery research and development team
• Nearly 30 years experience in feed pellet mill manufacturing, installation and commissioning
• Exported to  to 70 or 80 countries around the world, including UK, Nigeria, Thailand, India, Australia, South Africa, Pakistan, Kuwait, United States, Japan, Philippines, Portugal, etc.

If you don’t know which one fits your needs most, please contact us directly. Our professional engineers will details more information for your references. Maybe, most of you concern most about the price. Here, we promise our flat die feed pellet making machine is at lowest factory price. Our factory Fude Machinery is the orginal animal feed pellet machine manufacturer, so there are no price difference by middle businessman. Please rest assured to buy. Any questions, contact us immediately!
